Specifying Instructions
Follow these 6 steps to successfully create a USI pole code.

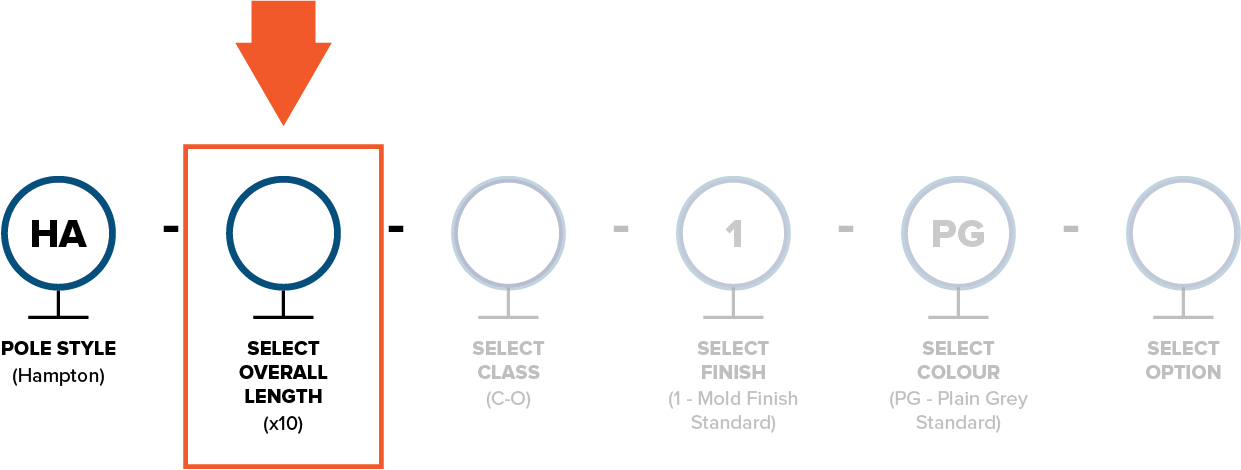

Step 1
Select OVERALL LENGTH
The Hampton Utility/Distribution concrete pole is available in overall lengths from 30' - 80'.
How to get the correct Overall Length code:
Multiply your selected Overall Length x 10 and use the resulting number as your code for quoting and ordering.
Example: If you are selecting the 40' pole, multiply this length x 10 to get the correct code for Overall Length, which in this case is 400. (40 x 10 = 400)

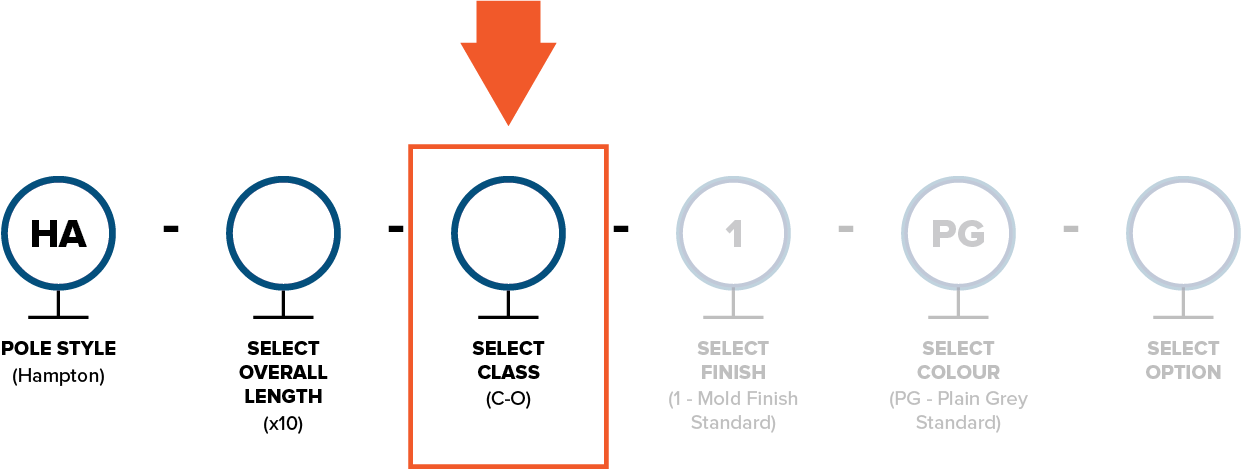

Step 2
Select CLASS (strength)
The Hampton Utility/Distribution concrete pole is available in 12 different strength classifications.
| CLASS | MINIMUM ULTIMATE TRANVERSE LOAD | ||
|---|---|---|---|
| (LBS) | (KN) | ||
| LIGHT DUTY |
C | 1200 | 5.3 |
 |
D | 1500 | 6.7 |
| E | 1900 | 8.5 | |
| F | 2400 | 10.7 | |
| G | 3000 | 13.3 | |
| H | 3700 | 16.5 | |
| J | 4500 | 20.0 | |
| K | 5400 | 24.0 | |
| L | 6400 | 28.5 | |
| M | 7500 | 33.4 | |
| N | 8700 | 38.7 | |
| HEAVY DUTY |
O | 10000 | 44.5 |

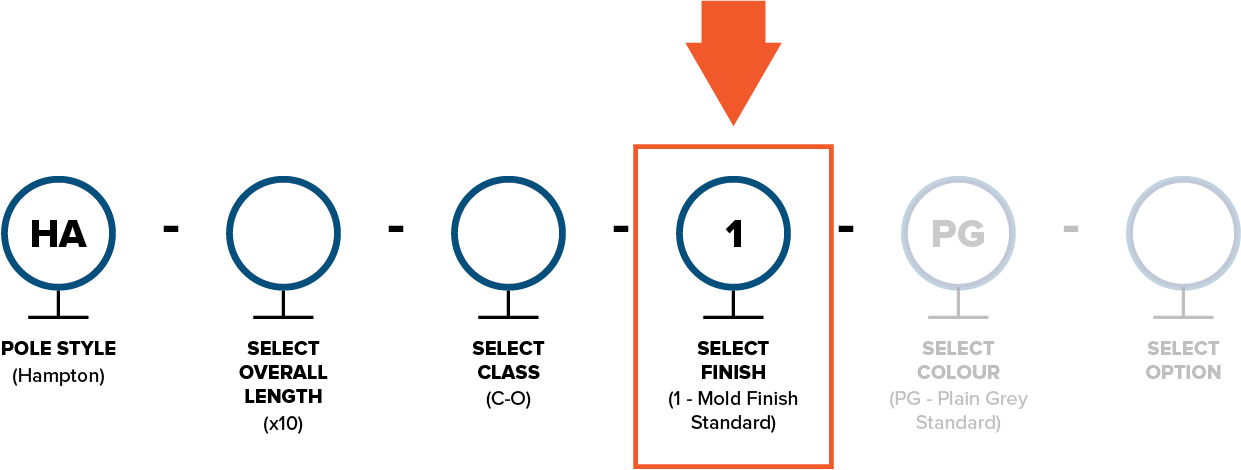

Step 3
Select FINISH

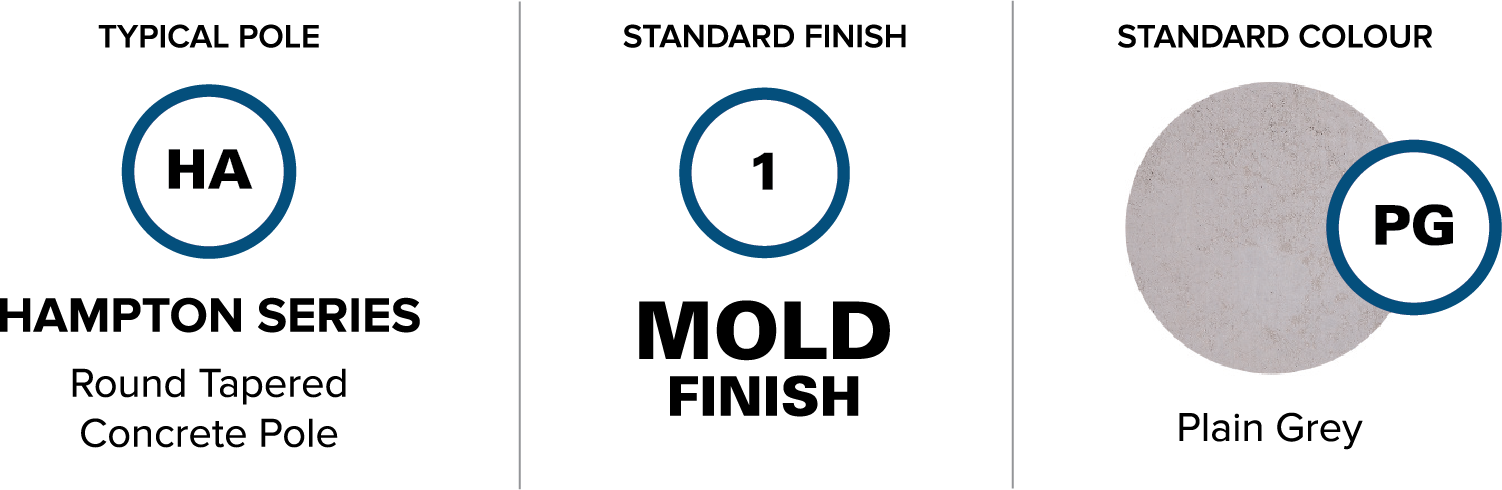

The Hampton Utility/Distribution concrete pole comes standard with a Plain Grey - Mold Finish but is also available in 2 other finishes.
| CODE | DESCRIPTION |
|---|---|
| 1 | Mold Finish (Standard) |
| N/A | Polished Finish |
| 3 | Etched Finish |
| 4 | Exposed Finish |

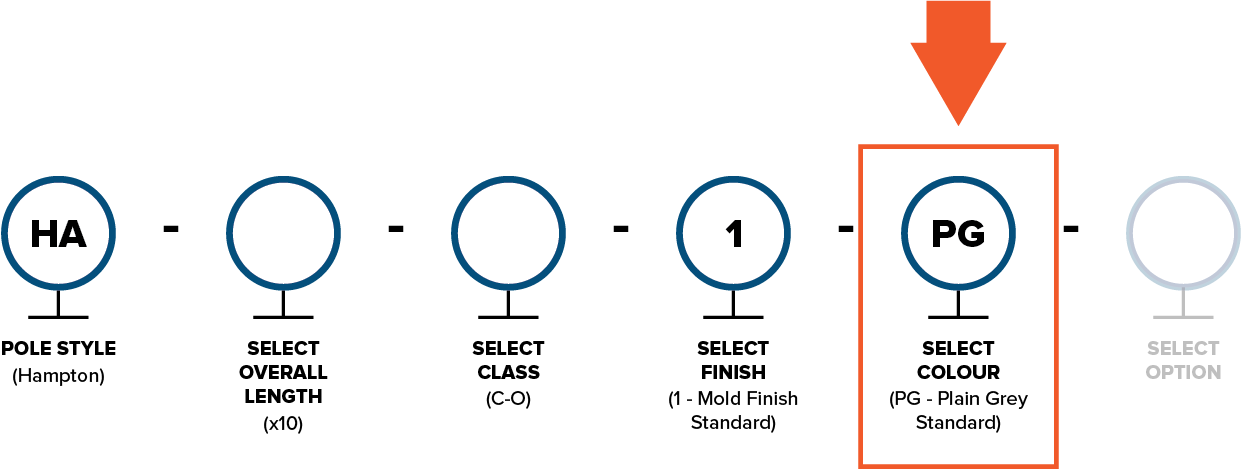

Step 4
Select COLOUR
The Hampton Utility/Distribution concrete pole comes standard with a Plain Grey - Mold Finish but is also available in 12 other colours. Please visit our Colours & Finishes section for complete information. Custom colours are available upon request.
| CODE | DESCRIPTION |
|---|---|

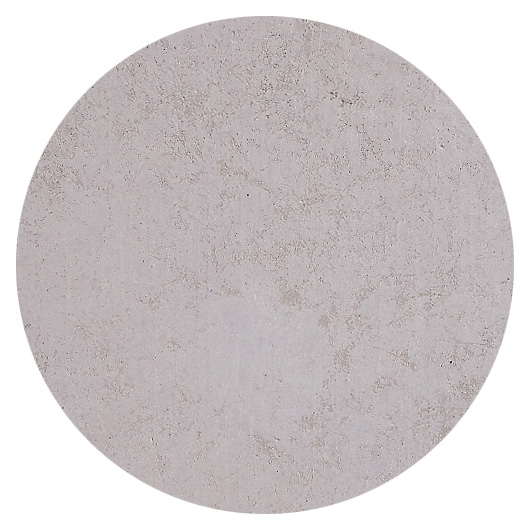

| PG | Plain Grey (Standard) |
| AR | Autumn Red |
| AJ | Aztec Jade |
| BE | Black Eclipse |
| DB | Dark Bronze |
| DR | Desert Rose |
| DS | Desert Sand |
| ML | Midnight Lace |
| NG | Natural Grey |
| OJ | Oriental Jade |
| SP | Salt & Pepper |
| SB | Seluki Bronze |
| VW | Venetian White |

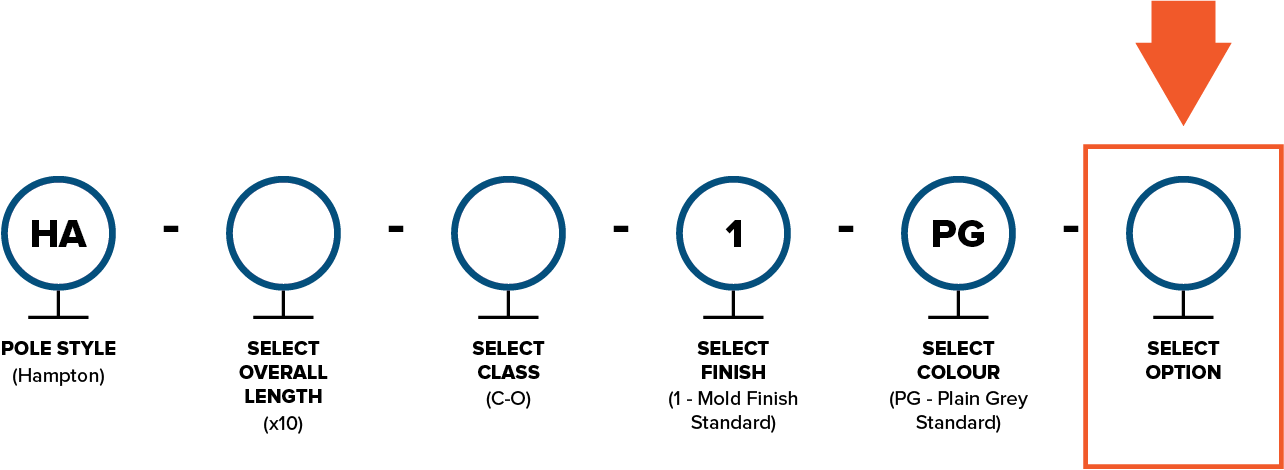

Step 5
Select OPTIONS
The Hampton Utility/Distribution concrete pole has 3 different options to choose from.
| CODE | DESCRIPTION |
|---|---|
| P | Interior Corrosion Protection |
| W | Wire Entry Box | X | Exterior Silane Sealer |
Step 6
Contact USI
With the information collected from steps 1 to 5, you can now contact a representative of USI to receive a quote or place an order.
Sales: sales@utilitystructures.com
Phone or fax
Toll Free: 1-800-267-6466
Tel: (613) 225-6398
Fax: (613) 225-1681

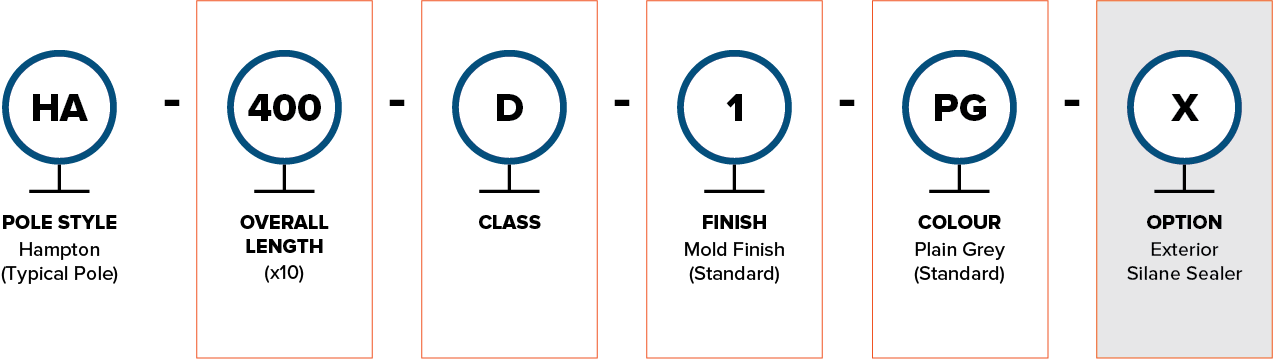

Example of complete USI Pole Code
