Details

PHYSICAL DETAILS

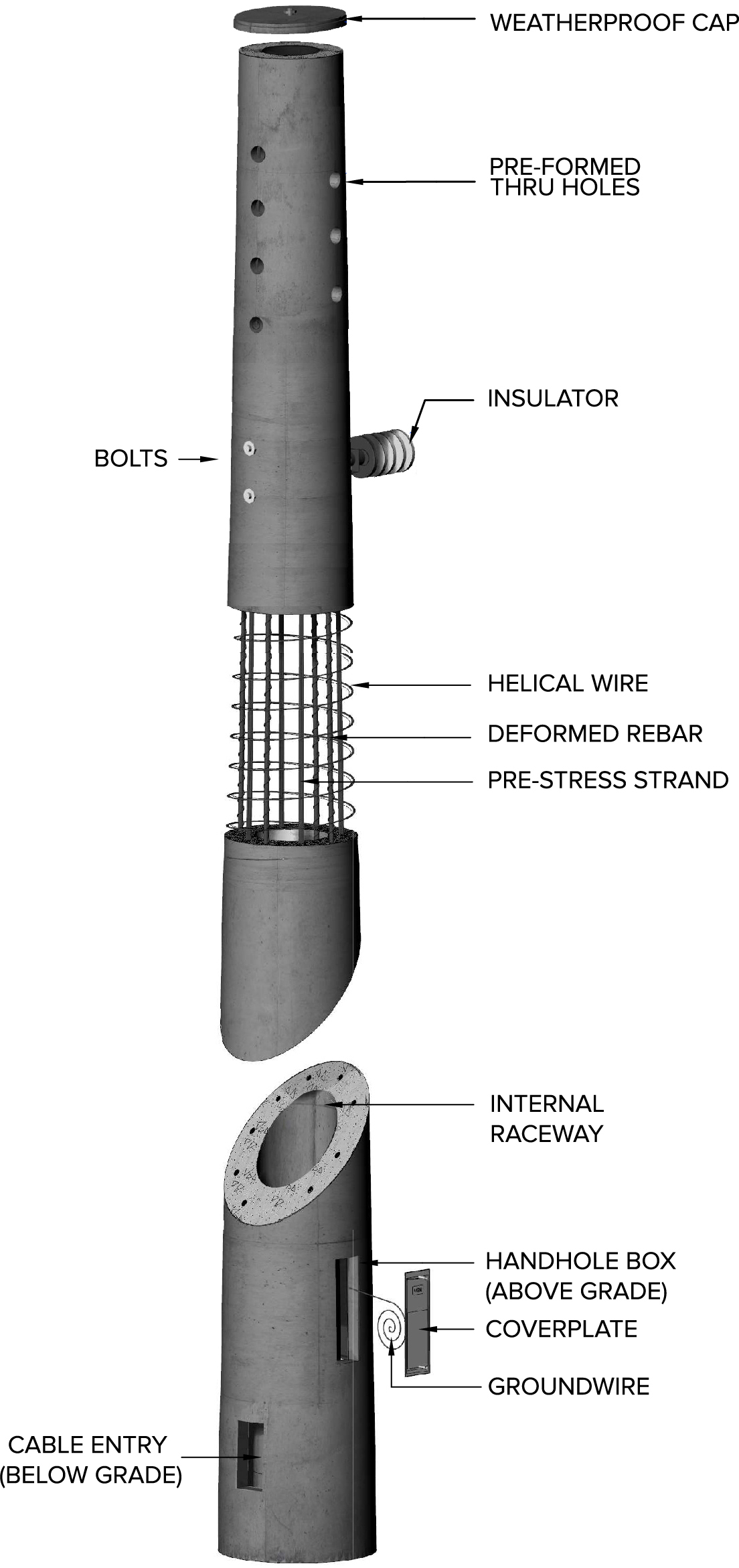

• Prestressed Reinforced, Spun Concrete Pole
• Hampton series pole is a typical standard

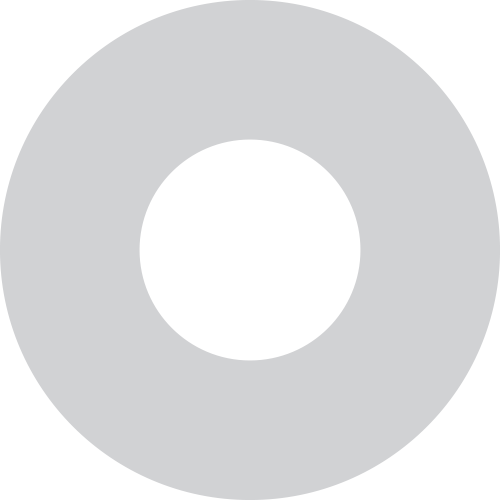

• Round symmetrical cross section
• Standard taper of 15mm/metre (0.18"/foot)
• Standard Plain Grey Colour, but other colours are available upon request
• Standard mold finish, but etched decor finishes are available upon request
• Available in heights from: 30' to 80' overall (25' to 70' above grade)

STANDARD FEATURES

• Openings - All through holes for arms, fixtures, and accessories are available, refer to the technical information section
• Above grade Handhole - 3.5" x 10.5" standard handhole box is cast into pole at 36" above grade. Box and coverplate are both high density ZA12 Zinc Alloy material
• Below Grade Handhole - 3.5" x 10.5" cable entry handhole, 18" below grade
• Electrical ground will be supplied with a #6 stranded copper wire
• Zinc (non-corrosive) inserts in 1/4", 3/8", 1/2", 5/8" or 3/4" are available
• CSA Identification name plate – manufacture date, height, class and Job #

OPTIONS

• Exterior Silane Sealer
• Admixture Corrosion Protection
• Wire Entry Box
