  • Sports Lighting

    Pole Heights

    • 30 to 40 feet
    • 45 to 55 feet
    • 60 to 70 feet

    Above Grade Pole Heights

    Click here to view PDF

    30' | 35' | 40'

    30'Above Grade | 35'Overall Length

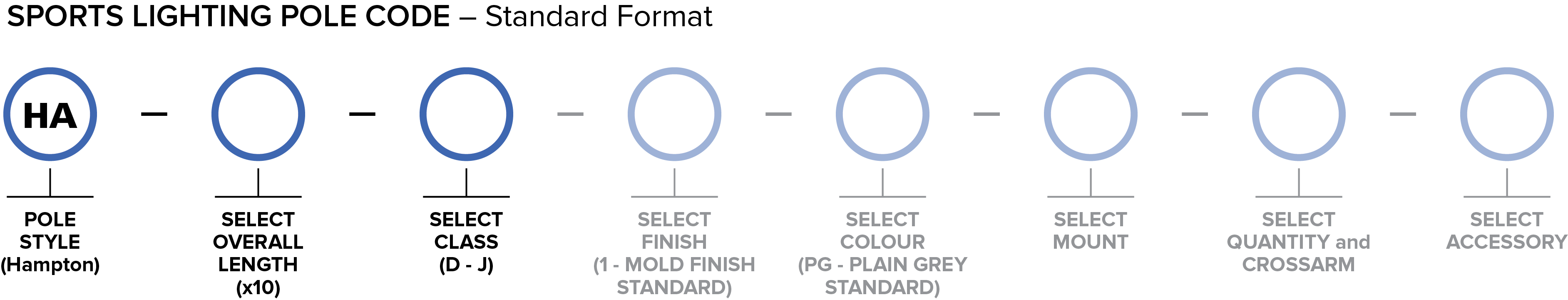

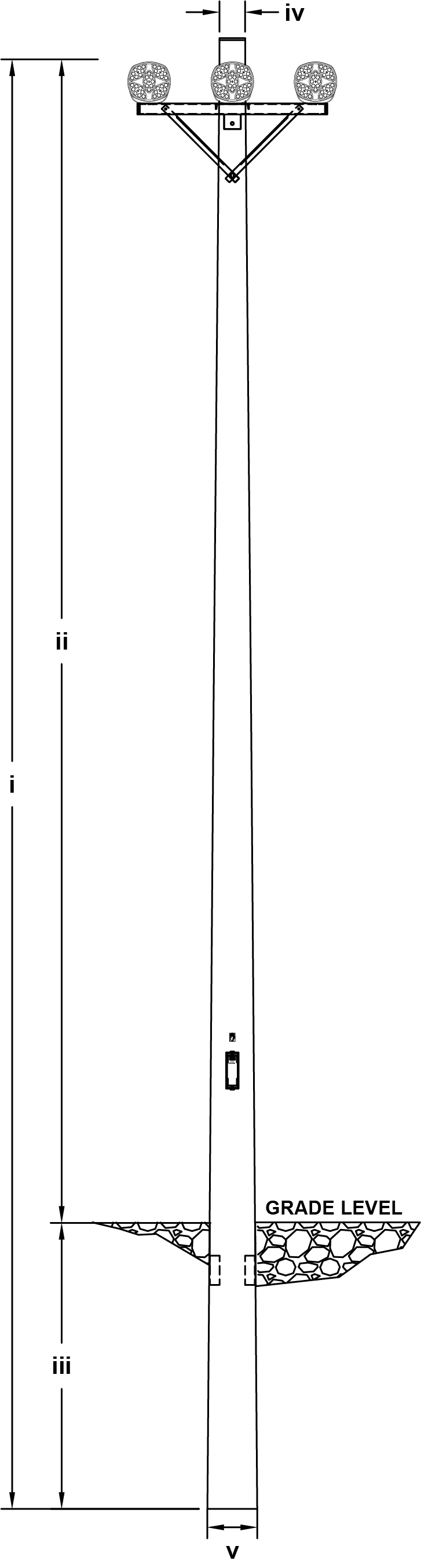

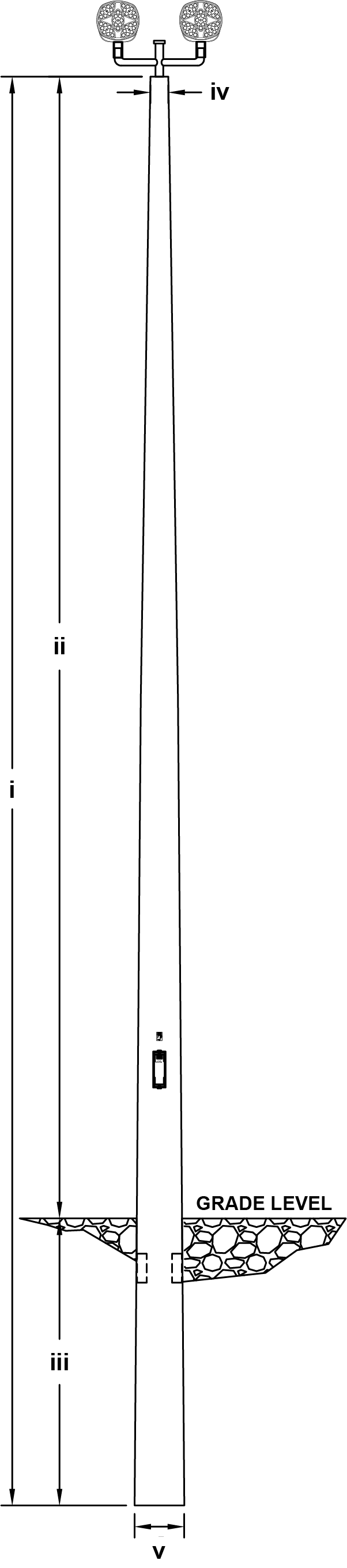

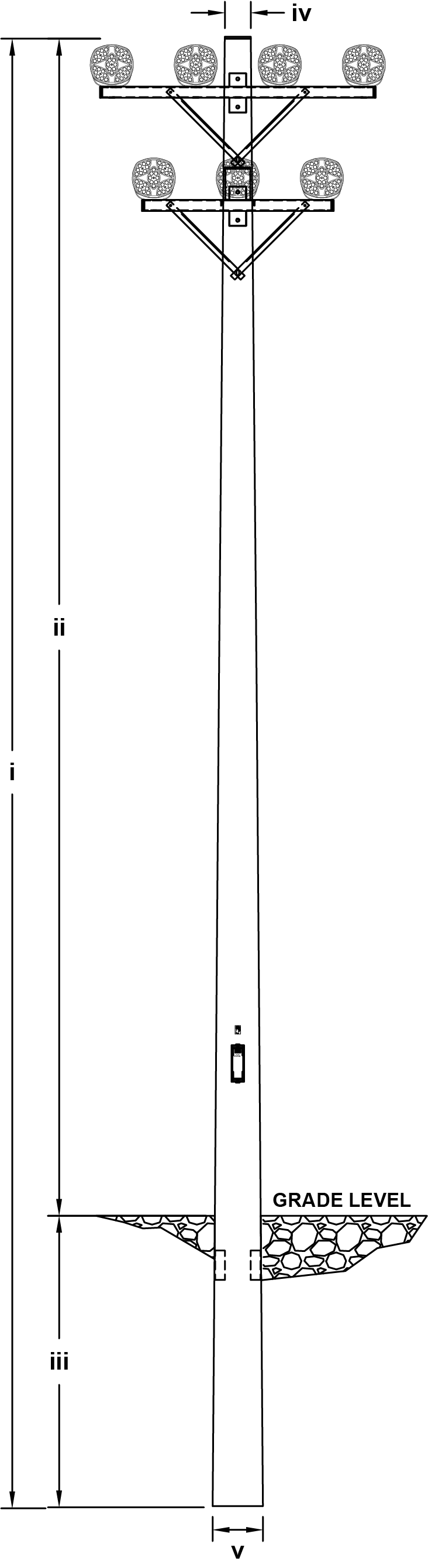

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-350 B 35 30 5 4 3/4 11 20 16 13 10 1501
    HA-350 C 35 30 5 6 1/2 12 7/8 24 19 14 11 2186
    HA-350 D 35 30 5 6 1/2 12 7/8 28 22 17 14 2211
    HA-350 E 35 30 5 6 1/2 12 7/8 32 26 21 18 3135

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.

    35'Above Grade | 41'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-410 B 41 35 6 4 3/4 12 1/8 18 14 12 9 2067
    HA-410 C 41 35 6 6 1/2 13 7/8 27 21 16 13 2905
    HA-410 D 41 35 6 6 1/2 13 7/8 35 27 22 17 2930
    HA-410 E 41 35 6 6 1/2 13 7/8 46 36 29 23 3005
    HA-410 F 41 35 6 6 1/2 13 7/8 59 47 38 31 3205

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.

    40'Above Grade | 46'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-460 C 46 40 6 6 1/2 14 3/4 25 19 15 11 3585
    HA-460 D 46 40 6 6 1/2 14 3/4 33 26 20 16 3610
    HA-460 E 46 40 6 6 1/2 14 3/4 44 34 27 22 3685
    HA-460 F 46 40 6 6 1/2 14 3/4 57 45 36 29 3885
    HA-460 G 46 40 6 8 16 1/4 72 57 46 37 4766

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.

    Above Grade Pole Heights

    Click here to view PDF

    45' | 50' | 55'

    45'Above Grade | 52'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-520 D 52 45 7 6 1/2 15 7/8 32 24 19 15 4553
    HA-520 E 52 45 7 6 1/2 15 7/8 42 33 26 20 4653
    HA-520 F 52 45 7 6 1/2 15 7/8 55 43 35 28 4853
    HA-520 G 52 45 7 8 17 3/8 70 55 44 35 5670
    HA-520 H 52 45 7 8 17 3/8 88 69 56 46 5770
    HA-520 J 52 45 7 8 17 3/8 109 86 70 57 5820

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.

    50'Above Grade | 57'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-570 D 57 50 7 6 1/2 16 3/4 30 23 17 13 5450
    HA-570 E 57 50 7 6 1/2 16 3/4 40 31 24 19 5550
    HA-570 F 57 50 7 8 18 1/4 53 41 33 26 7087
    HA-570 G 57 50 7 8 18 1/4 67 52 42 33 7137
    HA-570 H 57 50 7 8 18 1/4 85 67 54 43 7237
    HA-570 J 57 50 7 8 18 1/4 106 84 67 55 7437

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.

    55'Above Grade | 63'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-630 D 63 55 8 6 1/2 17 7/8 28 21 16 12 6733
    HA-630 E 63 55 8 6 1/2 17 7/8 39 29 23 18 6833
    HA-630 F 63 55 8 6 1/2 17 7/8 51 40 31 25 7033
    HA-630 G 63 55 8 8 19 3/8 65 50 40 31 8269
    HA-630 H 63 55 8 8 19 3/8 82 65 51 41 8319
    HA-630 J 63 55 8 8 19 3/8 103 81 65 53 8419

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.

    Above Grade Pole Heights

    Click here to view PDF

    60' | 65' | 70'

    60'Above Grade | 68'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-680 D 68 60 8 6 1/2 18 3/4 27 20 14 10 7884
    HA-680 E 68 60 8 6 1/2 18 3/4 37 28 21 16 7984
    HA-680 F 68 60 8 6 1/2 18 3/4 49 38 29 23 8184
    HA-680 G 68 60 8 8 20 1/4 62 48 38 30 9613
    HA-680 H 68 60 8 8 20 1/4 80 62 49 39 9663
    HA-680 J 68 60 8 8 20 1/4 100 78 63 51 9763
    HA-680 K 68 60 8 9 1/2 20 1/8* 121 95 76 62 10487

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.
    Note: Pole Butt Dimensions indicated with (*) have a taper of 13mm/m. Standard taper on all other poles is 15mm/m.

    65'Above Grade | 74'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-740 G 74 65 9 8 19 9/16* 60 46 36 28 9863
    HA-740 H 74 65 9 8 19 9/16* 77 60 47 37 9913
    HA-740 J 74 65 9 8 19 9/16* 97 76 60 48 10013
    HA-740 K 74 65 9 12 23 1/2* 117 92 74 59 15997
    HA-740 L 74 65 9 12 23 1/2* 140 109 86 69 16047
    HA-740 M 74 65 9 12 23 1/2* 167 131 105 85 16097

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.
    Note: Pole Butt Dimensions indicated with (*) have a taper of 13mm/m. Standard taper on all other poles is 15mm/m.

    70'Above Grade | 79'Overall Length

    Pole Catalogue Number Class i ii iii iv v Max EPA Nominal Pole Weight (lbs.)
    Overall Length
    [ft.]
    Pole Height Above Grade
    [ft.]
    Direct Burial Depth
    [ft.]
    Pole Tip Dimension
    [in.]
    Pole Butt Dimension
    [in.]
    90 MPH [sq.ft.] 100 MPH [sq.ft.] 110 MPH [sq.ft.] 120 MPH [sq.ft.]
    HA-790 G 79 70 9 8 20 5/16* 58 44 34 26 11233
    HA-790 H 79 70 9 8 20 5/16* 75 58 45 35 11283
    HA-790 J 79 70 9 8 20 5/16* 94 73 58 46 11383
    HA-790 K 79 70 9 12 24 3/8* 111 85 66 52 17945
    HA-790 L 79 70 9 12 24 3/8* 136 106 83 66 17995
    HA-790 M 79 70 9 12 24 3/8* 163 128 101 82 18045

    Note: The poles outlined represent a sampling only. Other heights and strengths (classes) are available upon request.
    Note: The Hampton (HA) series in a Plain Grey (PG), mold finish (1) is standard for all sportslighting poles. Different colours and finishes are available upon request.
    Note: Pole Butt Dimensions indicated with (*) have a taper of 13mm/m. Standard taper on all other poles is 15mm/m.

    Sports Lighting Photo Gallery

    Click images to enlarge
