    Crossarm Options

    • Tubular Crossarms – Heavy Duty
    • Angle Iron Crossarms – Medium Duty
    • Bullhorn Brackets – Light Duty

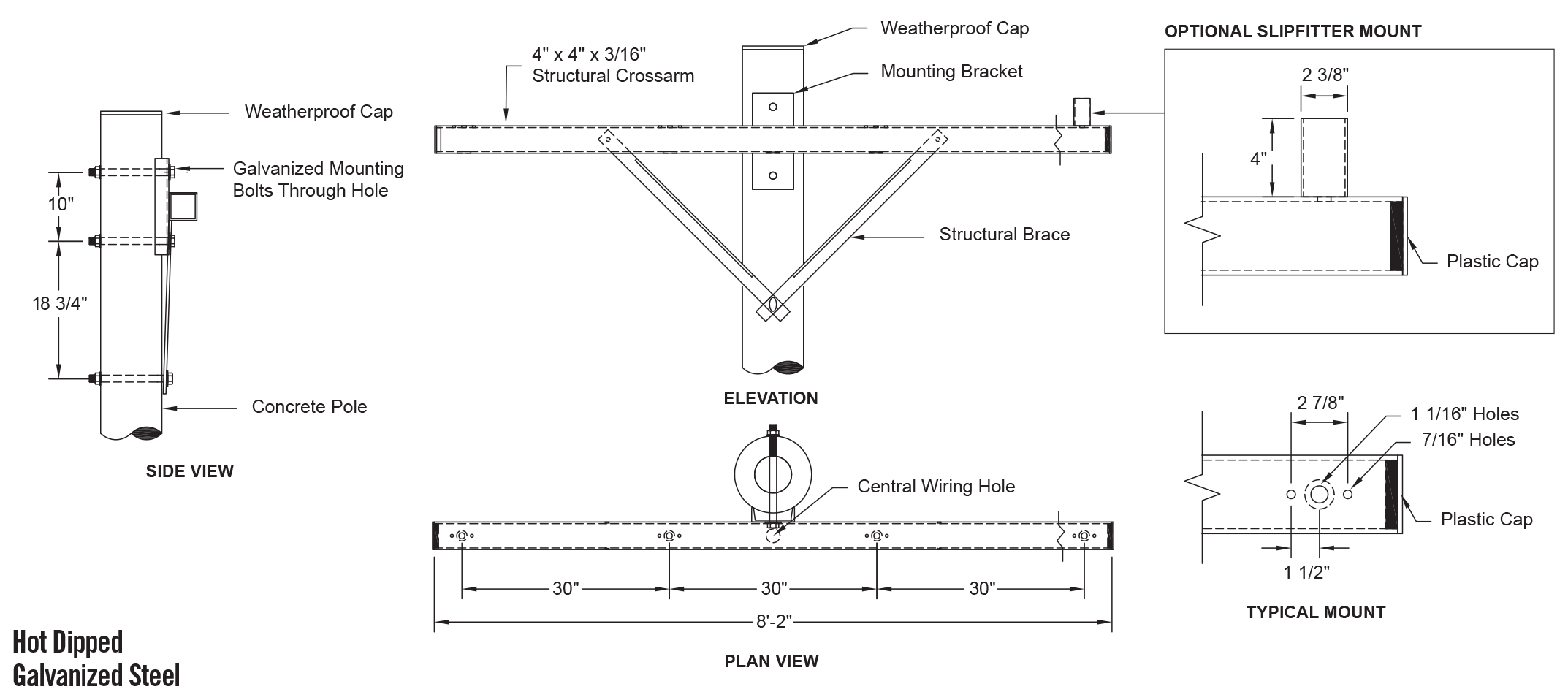

    Tubular Crossarms – Heavy Duty

    Click here to view PDF

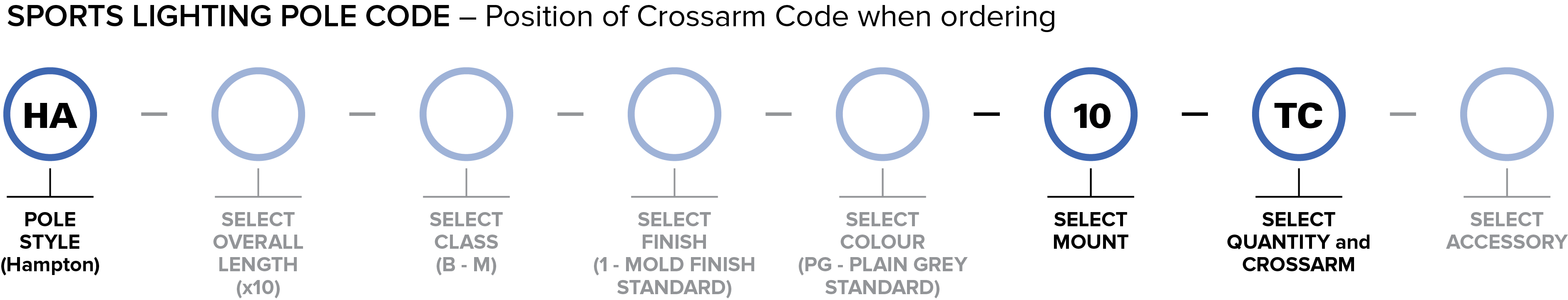

    You must select Mounting Option 10 (Side Mount) when choosing Tubular Crossarms.

    Select code:

    10

    +

    TC#

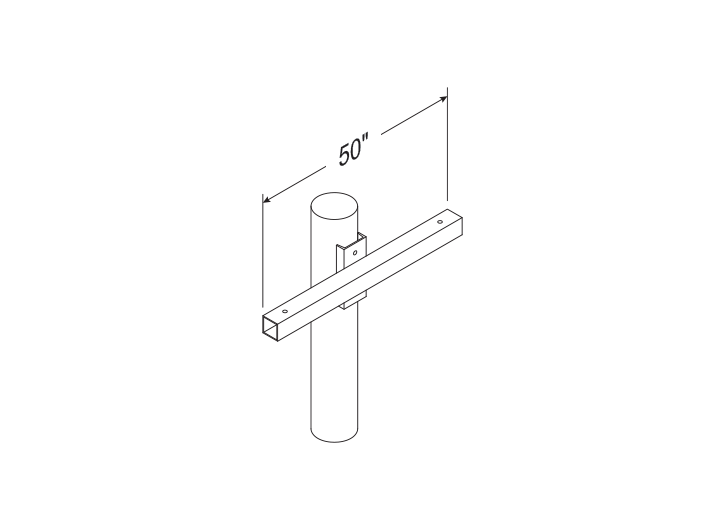

    TC2
    – 2 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    TC2 42 2.5 60
    TC3
    – 3 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    TC3 30 4.0 120

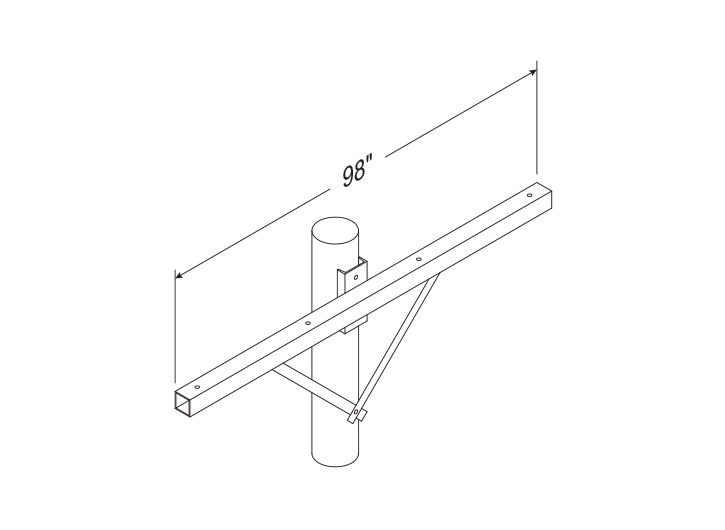

    TC4
    – 4 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    TC4 30 5.5 120

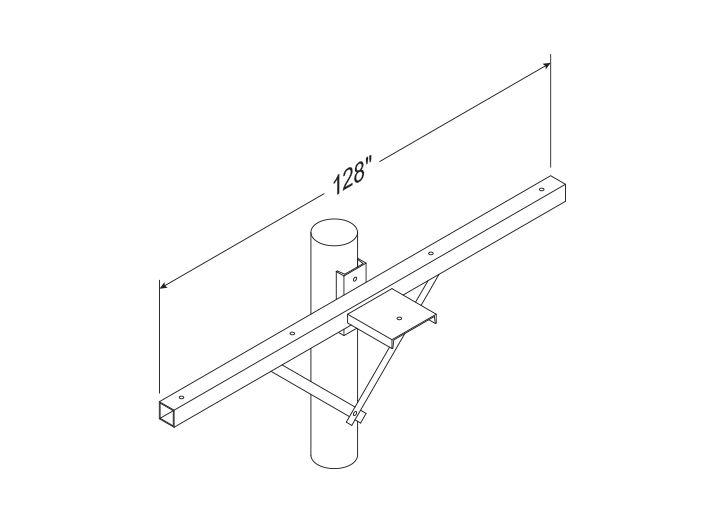

    TC5
    – 5 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    TC5 30 7.5 175

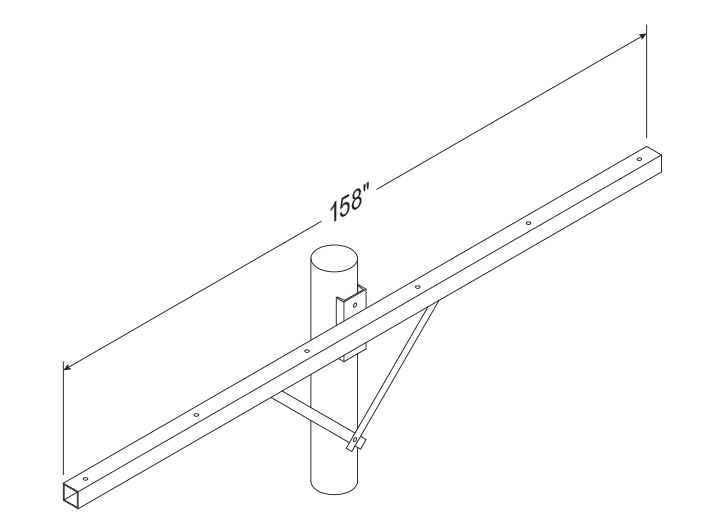

    TC6
    – 6 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    TC6 30 10.5 175
    NOTE: Fixture spacing above reflects our standard. Custom spacing available upon request.

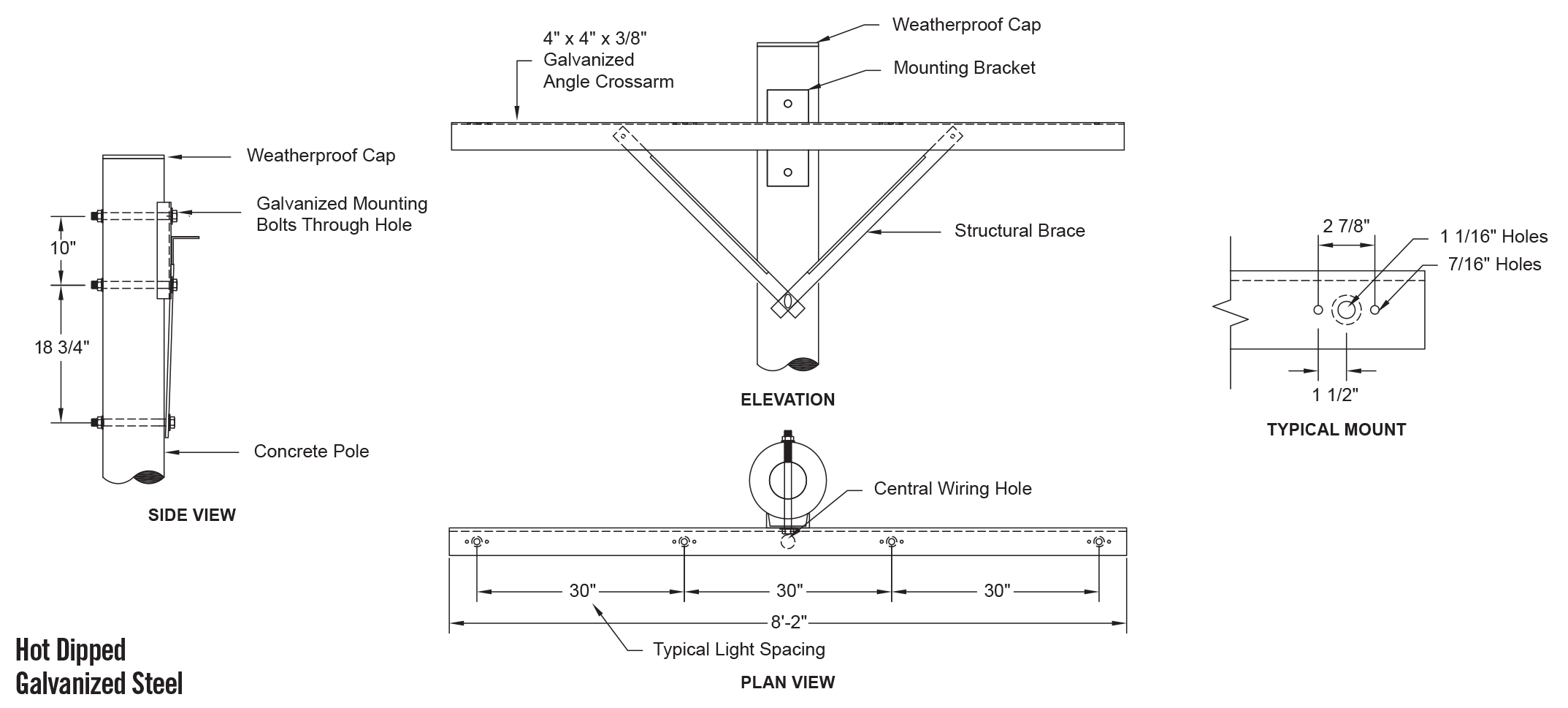

    Angle Iron Crossarms – Medium Duty

    Click here to view PDF

    You must select Mounting Option 10 (Side Mount) when choosing Angle Iron Crossarms.

    Select code:

    10

    +

    AC#
    AC2
    – 2 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    AC2 42 2.0 60

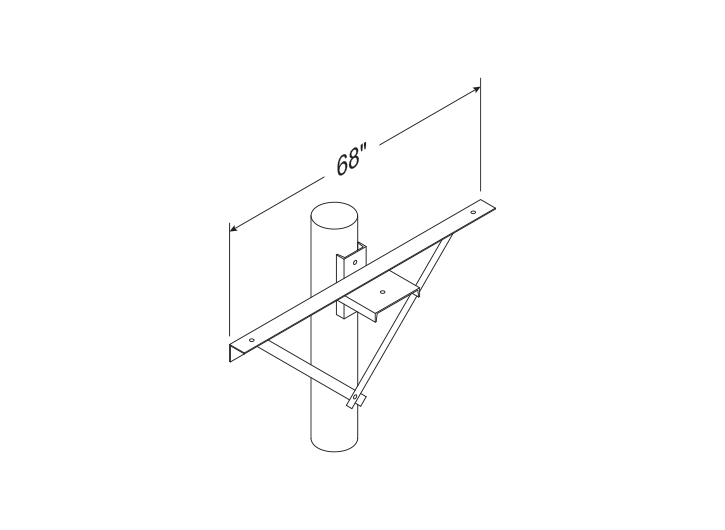

    AC3
    – 3 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    AC3 30 3.5 120

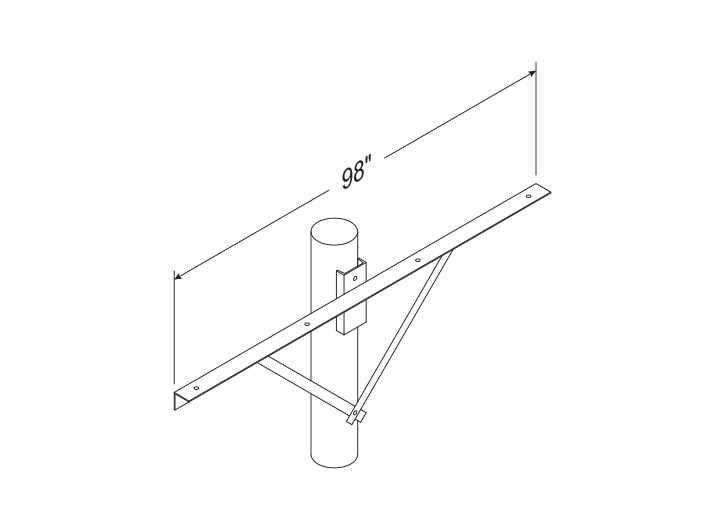

    AC4
    – 4 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    AC4 30 5.0 120

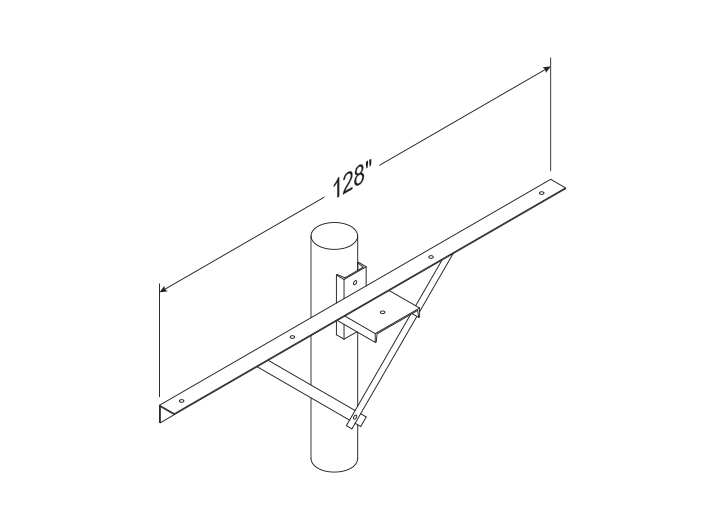

    AC5
    – 5 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    AC5 30 7.0 175

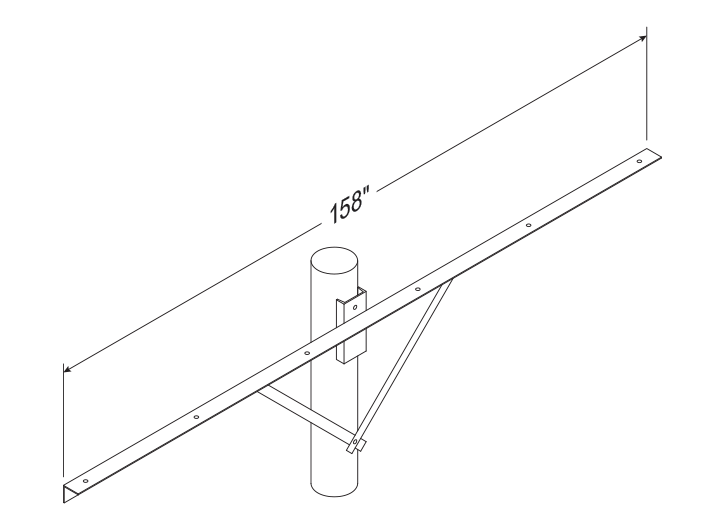

    AC6
    – 6 Lights
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    AC6 30 10.0 175
    NOTE: Fixture spacing above reflects our standard. Custom spacing available upon request.

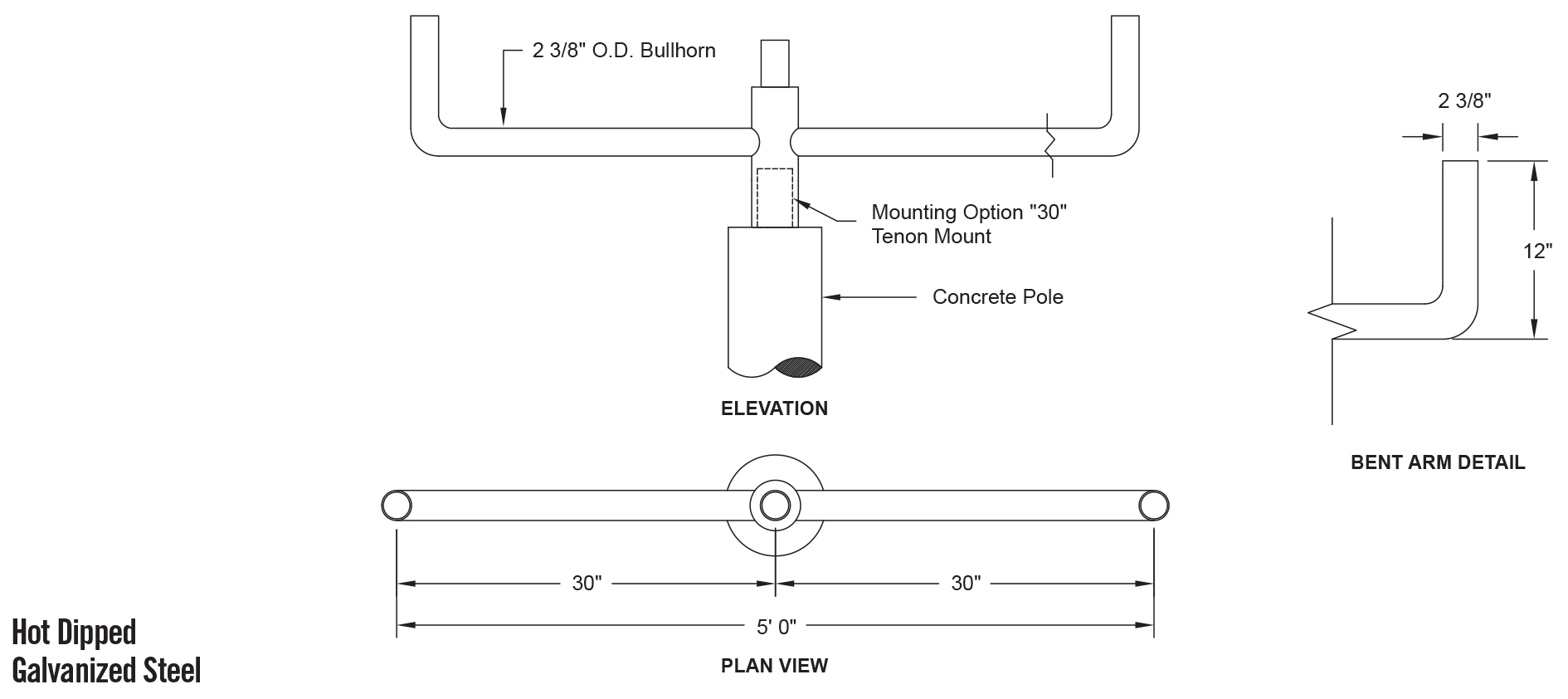

    Bullhorn Brackets – Light Duty

    Click here to view PDF

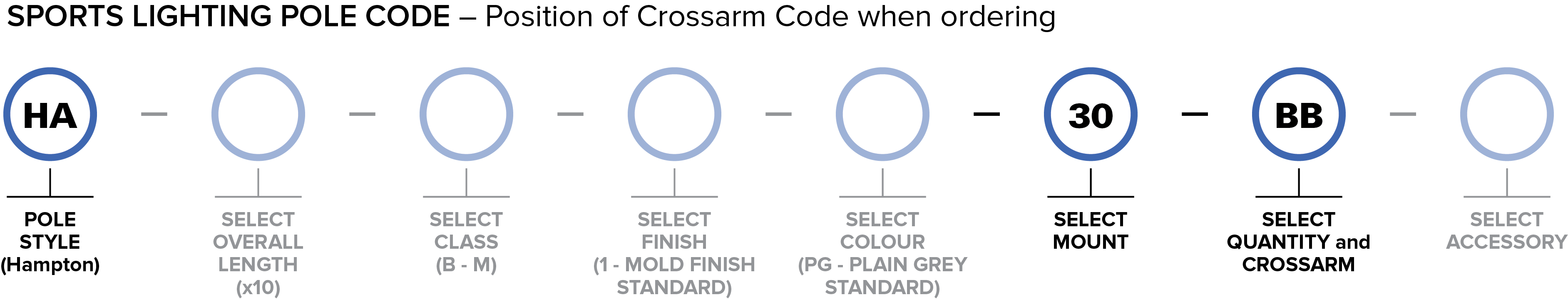

    You must select Mounting Option 30 (Steel Tenon) when choosing Bullhorn Brackets.

    Select code:

    30

    +

    BB#

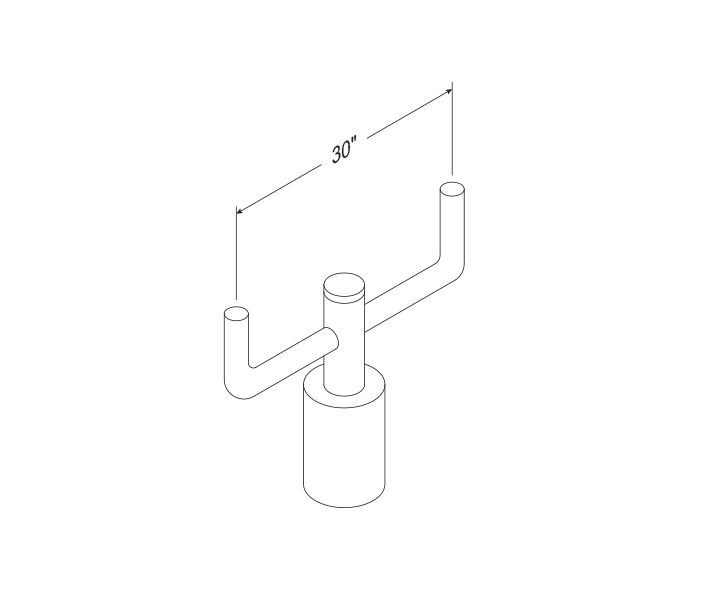

    BB2
    – 2 Lights @ 180°
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    BB2 30 1.0 22
    BB3
    – 3 Lights @ 180°
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    BB3 30 1.6 35
    BB3A
    – 3 Lights @ 120°
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    BB3A 15 1.8 40
    BB4
    – 4 Lights @ 180°
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    BB4 30 2.3 47

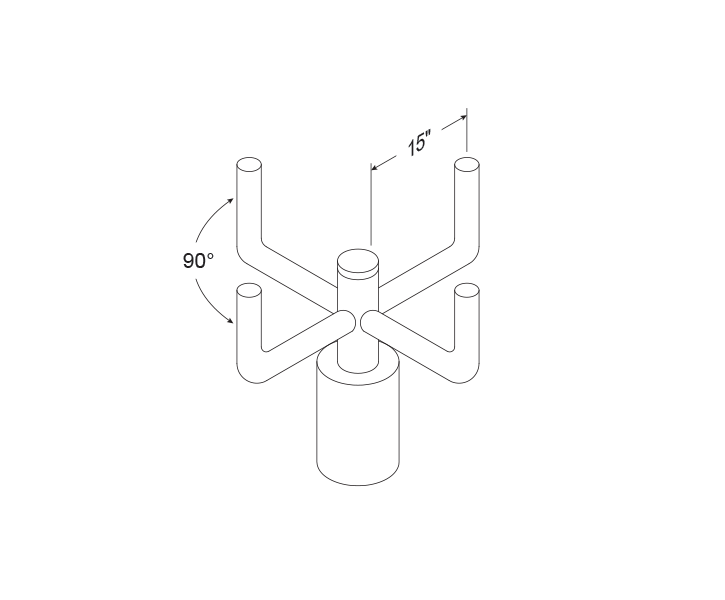

    BB4A
    – 4 Lights @ 90°
    Crossarm Catalogue Number Typical Fixture Spacing [in.] EPA [sq.ft.] Weight [lbs.]
    BB4A 15 1.6 50
    NOTE: Fixture spacing above reflects our standard. Custom spacing available upon request.
