    Pole Styles

    Madison

    Available in all colours.
    Salt & Pepper
    Black Eclipse

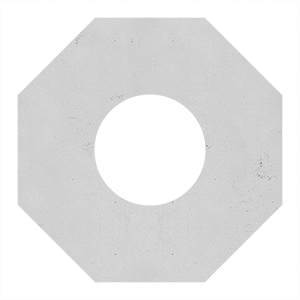

    Cross Section

    Octagonal

    Symmetrical / Tapered

    Available Heights (Above Grade)

    10' - 50'

    Download
    Madison Brochure
    Download
    Pole Detail Line Drawing
    Online
    Request a Quote

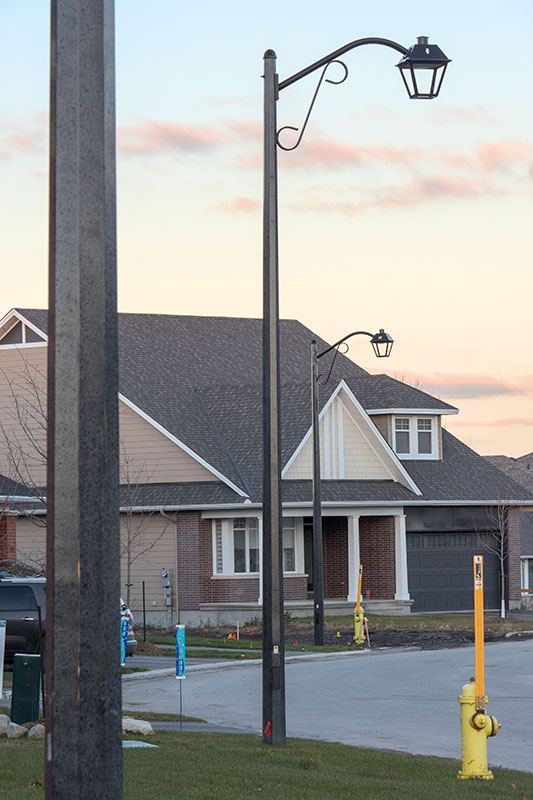

    Madison Photo Gallery

    Click images to enlarge

    Madison – Options and Information

    This reference chart outlines typical heights and classes for this pole style. Details on other sizes (not listed) are available upon request. Please contact our sales department for more information.

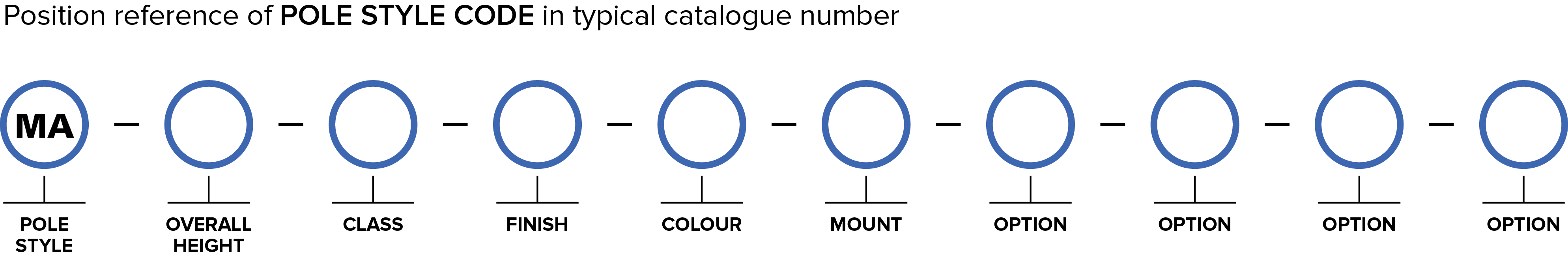

    Pole Class Pole Catalogue Number
    [Style/Height/Class]
    A B C D E Ultimate Ground Line Moment
    [FT. LBS.]
    Nominal Pole Weight
    [LBS.]
    Total Pole Length
    [FT.]
    Pole Height Above Grade
    [FT.]
    Direct Burial Depth
    [FT.]
    Pole Tip Dimension
    [IN.]
    Pole Butt Dimension
    [IN.]
    AL MA-150-AL 15 11 4 4 3/4 7 7/16 5400 475
    MA-175-AL 17 1/2 13 1/2 4 4 3/4 7 7/8 6900 600
    MA-200-AL 20 15 5 4 3/4 8 3/8 7800 735
    MA-225-AL 22 1/2 17 1/2 5 4 3/4 8 13/16 9300 860
    MA-250-AL 25 20 5 4 3/4 9 1/4 10800 990
    A MA-150-A 15 11 4 4 3/4 7 7/16 5400 490
    MA-175-A 17 1/2 13 1/2 4 4 3/4 7 7/8 6900 615
    MA-200-A 20 15 5 4 3/4 8 3/8 7800 750
    MA-225-A 22 1/2 17 1/2 5 4 3/4 8 13/16 9300 875
    MA-250-A 25 20 5 4 3/4 9 1/4 10800 1005
    MA-275-A 27 1/2 22 1/2 5 4 3/4 9 7/8 12300 1165
    MA-300-A 30 25 5 4 3/4 10 1/8 13800 1325
    MA-325-A 32 1/2 27 1/2 5 4 3/4 10 5/8 15300 1495
    MA-350-A 35 30 5 4 3/4 11 1/16 16800 1680
    B MA-250-B 25 20 5 5 9 1/2 16200 1040
    MA-275-B 27 1/2 22 1/2 5 5 10 18450 1210
    MA-300-B 30 25 5 5 10 3/8 20700 1375
    MA-325-B 32 1/2 27 1/2 5 5 10 7/8 22950 1554
    MA-350-B 35 30 5 5 11 3/8 25200 1740
    MA-375-B 37 1/2 32 1/2 5 5 11 3/4 27450 1950
    MA-400-B 40 34 6 5 12 1/4 28800 2165
    MA-425-B 42 1/2 36 1/2 6 5 12 5/8 31050 2370
    MA-450-B 45 39 6 5 13 1/8 33300 2577
    C MA-300-C 30 25 5 6 11 3/8 27600 1730
    MA-325-C 32 1/2 27 1/2 5 6 11 7/8 30600 1970
    MA-350-C 35 30 5 6 12 5/16 33600 2205
    MA-375-C 37 1/2 32 1/2 5 6 12 3/4 36600 2440
    MA-400-C 40 34 6 6 13 3/16 38400 2675
    D MA-400-D 40 34 6 6 13 3/16 48000 2675
    MA-425-D 42 1/2 36 1/2 6 6 13 5/8 51750 2915
    MA-450-D 45 39 6 6 14 1/8 55500 3150
    MA-475-D 47 1/2 40 1/2 7 6 14 1/2 57750 3385
    MA-500-D 50 43 7 6 15 61500 3620

    The Madison is available in 4 different surface finishes. For more information on our Surface Finish Options click here.

    1

    Plain Grey Mold Finish

    2

    Polished Finish

    3

    Etched Finish

    4

    Exposed Finish

    The Madison is available in all 12 standard USI colours as well as with our plain grey mold finish. Custom colours are available, please contact our sales department. For more information on our Colour Options click here.

    AR

    Autumn Red

    Polished

    Etched

    Exposed

    AJ

    Aztec Jade

    Polished

    Etched

    Exposed

    BE

    Black Eclipse

    Polished

    Etched

    Exposed

    DB

    Dark Bronze

    Polished

    Etched

    Exposed

    DR

    Desert Rose

    Polished

    Etched

    Exposed

    DS

    Desert Sand

    Polished

    Etched

    Exposed

    ML

    Midnight Lace

    Polished

    Etched

    Exposed

    NG

    Natural Grey

    Polished

    Etched

    Exposed

    OJ

    Oriental Jade

    Polished

    Etched

    Exposed

    SP

    Salt & Pepper

    Polished

    Etched

    Exposed

    SB

    Seluki Bronze

    Polished

    Etched

    Exposed

    VW

    Venetian White

    Polished

    Etched

    Exposed

    The Madison has 7 available fixture mount options. For more information on our Fixture Mount Options click here.

    10

    Side Mount / Through Bolts

    20

    Side Mount / Inserts

    30

    Steel Tenon / Post Top

    55

    Top Mount / Octagonal

    60

    Scroll Arm

    80

    Camera Mount

    USI can accomodate any style of fixture or arm. If the style you require is not shown, please select Option 90 and contact our sales department.

    90

    Custom Mount

    The Madison has 18 available options and accessories. For more information on our Options and Accessories click here.

    A

    Banner Arm

    A1

    Banner Arm with Scroll

    A2

    Banner Arm with Flower Pot Holder

    A3

    Banner Arm with Scroll and Flower Pot Holder

    A4

    Breakaway Banner Arm

    B

    Base Plate - Flush with Bolts Exposed

    C

    Custom Accessory

    D

    Double Handhole Box

    D2

    Double Handhole Box with In-Pole Breaker

    F

    Fin Cap – Octagonal

    H

    Flag Holder

    L

    Ladder Arm Rest

    L1

    Ladder Arm Rest with Scroll

    P

    Interior Corrosion Protection

    R

    GFI Receptacle

    S

    Base Plate Shroud - Square

    S1

    Base Plate Shroud - Round

    X

    Exterior Silane Sealer

    • Pole is generally directly buried in the ground, eliminating the need for the more costly base mounted design.
    • A galvanized steel base plate is optional. Refer to our options and accessories section for details regarding this option.
    • Burial depth of poles is a standard 5' 0".
    • In most cases the native material can be used for backfill material. If the soil is poor or there are heavy loads on the poles, select backfill may be required. Refer to the technical data sheets.

    Direct Burial - Standard and Cost Effective

    1. Auger the appropriate size hole.
    2. Set pole in hole and plumb straight.
    3. Back fill with specified material, tamping every 6".

    Note: Generally the native material can be used for backfill. Depending on site conditions, alternative materials may be required.

    B

    Base Plate - Flush with bolts exposed

    1. Hot-dipped galvanized steel baseplate
    2. Opening for internal wiring
    3. Slotted openings for anchor bolts
    4. Anchor bolts
    5. Precast or poured in-place pole base
    Online
    Request a Quote

    Address

    61 Bongard Avenue
    Ottawa, Ontario, Canada
    K2E 6V2

    Phone

    Toll Free: 1-800-267-6466
    Tel: (613) 225-6398
    Fax: (613) 225-1681

    Email

    Sales: sales@utilitystructures.com
    Info: info@utilitystructures.com

    Business Hours

    Monday – Friday:
    8:00 a.m. – 5:00 p.m. (EST)
