- Auger the appropriate size hole.
- Set pole in hole and plumb straight.
- Back fill with specified material, tamping every 6".
- Hot-dipped galvanized steel baseplate (20" x 20" x 1")
- Opening for internal wiring
- Slotted openings for a 21" diameter bolt circle
- Typically pole is set 2" - 3" below grade
- Anchor bolts (3/4"⌀ x 27" x 3-3/4")
- Precast or poured in-place pole base
- Hot-dipped galvanized steel baseplate (13 1/2" x 13 1/2" x 3/4")
- Opening for internal wiring
- Slotted openings for a 14 1/2" diameter bolt circle
- Concrete extension for baseplate mounting
- Anchor bolts (3/4"⌀ x 27" x 3-3/4")
Streetlighting / Decorative
Parkdale
Cross Section
Octagonal
Symmetrical / Tapered
Available Heights (Above Grade)
18' - 27'
This reference chart outlines typical heights and classes for this pole style. Details on other sizes (not listed) are available upon request. Please contact our sales department for more information.

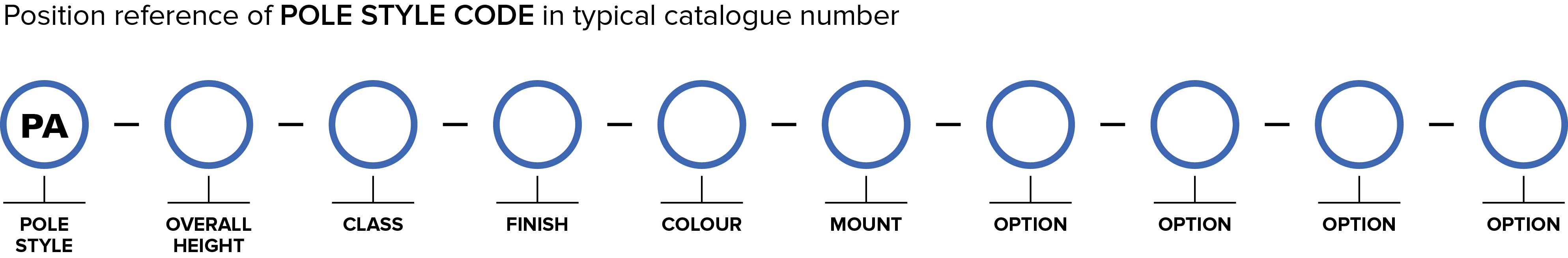

| Pole Class | Pole Catalogue Number [Style/Height/Class] |
A | B | C | D | E | Ultimate Ground Line Moment [FT. LBS.] |
Nominal Pole Weight [LBS.] |
| Total Pole Length [FT.] |
Pole Height Above Grade [FT.] |
Direct Burial Depth [FT.] |
Pole Tip Dimension [IN.] |
Pole Butt Dimension [IN.] |
||||
| A | PA-230-A | 23 | 18 | 5 | 6 1/8 | 9 3/4 | 9600 | 1345 |
| PA-240-A | 24 | 19 | 5 | 6 | 9 3/4 | 10200 | 1425 | |
| PA-250-A | 25 | 20 | 5 | 5 7/8 | 9 3/4 | 10800 | 1500 | |
| PA-260-A | 26 | 21 | 5 | 5 3/4 | 9 3/4 | 11400 | 1570 | |
| PA-270-A | 27 | 22 | 5 | 5 5/8 | 9 3/4 | 12000 | 1635 | |
| PA-280-A | 28 | 23 | 5 | 5 1/2 | 9 3/4 | 12600 | 1695 | |
| PA-290-A | 29 | 24 | 5 | 5 3/8 | 9 3/4 | 13200 | 1750 | |
| PA-300-A | 30 | 25 | 5 | 5 1/4 | 9 3/4 | 13800 | 1800 | |
| PA-310-A | 31 | 26 | 5 | 5 1/8 | 9 3/4 | 14400 | 1850 | |
| PA-320-A | 32 | 27 | 5 | 5 | 9 3/4 | 15000 | 1890 |
The Parkdale is available in 4 different surface finishes. For more information on our Surface Finish Options click here.
Plain Grey Mold Finish
Polished Finish
Etched Finish
Exposed Finish
The Parkdale is available in all 12 standard USI colours as well as with our plain grey mold finish. Custom colours are available, please contact our sales department. For more information on our Colour Options click here.
Autumn Red
Polished
Etched
Exposed
Aztec Jade
Polished
Etched
Exposed
Black Eclipse
Polished
Etched
Exposed
Dark Bronze
Polished
Etched
Exposed
Desert Rose
Polished
Etched
Exposed
Desert Sand
Polished
Etched
Exposed
Midnight Lace
Polished
Etched
Exposed
Natural Grey
Polished
Etched
Exposed
Oriental Jade
Polished
Etched
Exposed
Salt & Pepper
Polished
Etched
Exposed
Seluki Bronze
Polished
Etched
Exposed
Venetian White
Polished
Etched
Exposed
The Parkdale has 7 available fixture mount options. For more information on our Fixture Mount Options click here.
Side Mount / Through Bolts
Side Mount / Inserts
Steel Tenon / Post Top
Concrete Tenon / Post Top
Top Mount / Octagonal
Scroll Arm
USI can accomodate any style of fixture or arm. If the style you require is not shown, please select Option 90 and contact our sales department.
Custom Mount
The Parkdale has 20 available options and accessories. For more information on our Options and Accessories click here.
Direct Burial - Standard and Cost Effective
Note: Generally the native material can be used for backfill. Depending on site conditions, alternative materials may be required.
Base Plate - Flush with bolts exposed
Base Plate - Below Grade Stub
