    • Streetlighting / Decorative

    Pole Styles

    Hampton

    Available in all colours.
    Salt & Pepper
    Black Eclipse

    Cross Section

    Round

    Symmetrical / Tapered

    Available Heights (Above Grade)

    10' - 70'

    Download
    Hampton Brochure
    Download
    Pole Detail Line Drawing
    Online
    Request a Quote

    Hampton Photo Gallery

    Click images to enlarge

    Hampton – Options and Information

    This reference chart outlines typical heights and classes for this pole style. Details on other sizes (not listed) are available upon request. Please contact our sales department for more information.

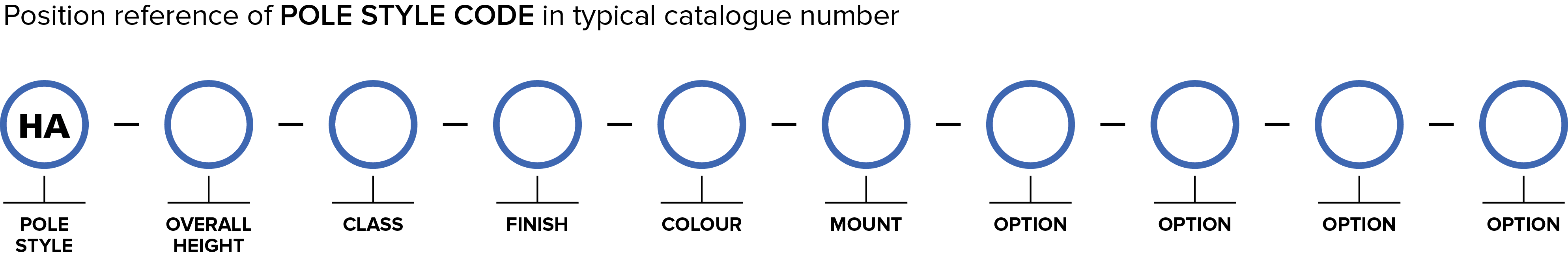

    Pole Class Pole Catalogue Number
    [Style/Height/Class]    		 A B C D E Ultimate Ground Line Moment
    [FT. LBS.]    		 Nominal Pole Weight
    [LBS.]
    Total Pole Length
    [FT.]    		 Pole Height Above Grade
    [FT.]    		 Direct Burial Depth
    [FT.]    		 Pole Tip Dimension
    [IN.]    		 Pole Butt Dimension
    [IN.]
    AL HA-150-AL 15 11 4 4 3/4 7 7/16 4800 450
    HA-175-AL 17 1/2 13 1/2 4 4 3/4 7 7/8 6300 575
    HA-200-AL 20 15 5 4 3/4 8 3/8 7800 700
    HA-225-AL 22 1/2 17 1/2 5 4 3/4 8 13/16 9300 820
    HA-250-AL 25 20 5 4 3/4 10 1/8 10800 940
    A HA-150-A 15 11 4 4 3/4 7 7/16 4800 450
    HA-175-A 17 1/2 13 1/2 4 4 3/4 7 7/8 6300 575
    HA-200-A 20 15 5 4 3/4 8 3/8 7800 700
    HA-225-A 22 1/2 17 1/2 5 4 3/4 8 13/16 9300 820
    HA-250-A 25 20 5 4 3/4 9 1/4 10800 940
    HA-275-A 27 1/2 22 1/2 5 4 3/4 9 11/16 12300 1095
    HA-300-A 30 25 5 4 3/4 10 1/8 13800 1250
    HA-325-A 32 1/2 27 1/2 5 4 3/4 10 5/8 15300 1410
    HA-350-A 35 30 5 4 3/4 11 1/16 16800 1575
    B
    HA-250-B
    25
    20
    5
    4 3/4
    9 1/5
    16200
    940
    HA-275-B
    27 1/2
    22 1/2
    5
    4 3/4
    9 11/16
    18450
    1095
    HA-300-B
    30
    25
    5
    4 3/4
    10 1/8
    20700
    1250
    HA-325-B
    32 1/2
    27 1/2
    5
    4 3/4
    10 5/8
    22950
    1410
    HA-350-B
    35
    30
    5
    4 3/4
    11 1/16
    25200
    1575
    HA-375-B
    37 1/2
    32 1/2
    5
    4 3/4
    11 1/2
    27450
    1770
    HA-400-B
    40
    34
    6
    4 3/4
    11 15/16
    28800
    1965
    HA-425-B
    42 1/2
    36 1/2
    6
    4 3/4
    12 3/8
    31050
    2130
    HA-450-B
    45
    39
    6
    4 3/4
    12 7/8
    33300
    2300
    C
    HA-300-C
    30
    25
    5
    6
    11 3/8
    27600
    1650
    HA-325-C
    32 1/2
    27 1/2
    5
    6
    11 7/8
    30600
    1875
    HA-350-C
    35
    30
    5
    6
    12 5/16
    33600
    2100
    HA-375-C
    37 1/2
    32 1/2
    5
    6
    12 3/4
    36600
    2325
    HA-400-C
    40
    34
    6
    6
    13 3/16
    38400
    2550
    D
    HA-400-D
    40
    34
    6
    6
    13 3/16
    48000
    2550
    HA-425-D
    42 1/2
    36 1/2
    6
    6
    13 5/8
    51750
    2775
    HA-450-D
    45
    39
    6
    6
    14 1/8
    55500
    3000
    HA-475-D
    47 1/2
    41
    6 1/2
    6
    14 9/16
    58500
    3225
    HA-500-D
    50
    43
    7
    6
    15
    61500
    3450

    The Hampton is available in 3 different surface finishes. Note: The polished finish is not available for this pole. For more information on our Surface Finish Options click here.

    1

    Plain Grey Mold Finish

    N/A

    2

    Polished Finish

    3

    Etched Finish

    4

    Exposed Finish

    The Hampton is available in all 12 standard USI colours as well as with our plain grey mold finish. Custom colours are available, please contact our sales department. For more information on our Colour Options click here.

    AR

    Autumn Red

    Etched

    Exposed

    AJ

    Aztec Jade

    Etched

    Exposed

    BE

    Black Eclipse

    Etched

    Exposed

    DB

    Dark Bronze

    Etched

    Exposed

    DR

    Desert Rose

    Etched

    Exposed

    DS

    Desert Sand

    Etched

    Exposed

    ML

    Midnight Lace

    Etched

    Exposed

    NG

    Natural Grey

    Etched

    Exposed

    OJ

    Oriental Jade

    Etched

    Exposed

    SP

    Salt & Pepper

    Etched

    Exposed

    SB

    Seluki Bronze

    Etched

    Exposed

    VW

    Venetian White

    Etched

    Exposed

    The Hampton has 13 available fixture mount options. For more information on our Fixture Mount Options click here.

    10

    Side Mount / Through Bolts

    20

    Side Mount / Inserts

    30

    Steel Tenon / Post Top

    40

    Concrete Tenon / Post Top

    50

    Top Mount / Round

    60

    Scroll Arm

    70

    Clamp On

    80

    Camera Mount

    USI can accomodate any style of fixture or arm. If the style you require is not shown, please select Option 90 and contact our sales department.

    90

    Custom Mount

    The Hampton has 18 available options and accessories. For more information on our Options and Accessories click here.

    A

    Banner Arm

    A1

    Banner Arm with Scroll

    A2

    Banner Arm with Flower Pot Holder

    A3

    Banner Arm with Scroll and Flower Pot Holder

    A4

    Breakaway Banner Arm

    B

    Base Plate - Flush with Bolts Exposed

    C

    Custom Accessory

    D

    Double Handhole Box

    D2

    Double Handhole Box with In-Pole Breaker

    H

    Flag Holder

    L

    Ladder Arm Rest

    L1

    Ladder Arm Rest with Scroll

    P

    Interior Corrosion Protection

    R

    GFI Receptacle

    S

    Base Plate Shroud - Square

    S1

    Base Plate Shroud - Round

    W

    Wire Entry

    X

    Exterior Silane Sealer

    • Pole is generally directly buried in the ground, eliminating the need for the more costly base mounted design.
    • A galvanized steel base plate is optional. Refer to our Options / Accessories section for details regarding this option.
    • Burial depth of poles is a standard 5' 0".
    • In most cases the native material can be used for backfill material. If the soil is poor or there are heavy loads on the poles, select backfill may be required. Refer to the technical data sheets.

    Direct Burial - Standard and Cost Effective

    1. Auger the appropriate size hole.
    2. Set pole in hole and plumb straight.
    3. Back fill with specified material, tamping every 6".

    Note: Generally the native material can be used for backfill. Depending on site conditions, alternative materials may be required.

    B

    Base Plate - Flush with bolts exposed

    1. Hot-dipped galvanized steel baseplate
    2. Opening for internal wiring
    3. Slotted openings for anchor bolts
    4. Anchor bolts
    5. Precast or poured in-place pole base
