- Auger the appropriate size hole.
- Set pole in hole and plumb straight.
- Back fill with specified material, tamping every 6".
- Hot-dipped galvanized steel baseplate (20" x 20" x 1")
- Opening for internal wiring
- Slotted openings for a 21" diameter bolt circle
- Typically pole is set 2" - 3" below grade
- Anchor bolts (3/4"⌀ x 27" x 3-3/4")
- Precast or poured in-place pole base
- Hot-dipped galvanized steel baseplate (13 1/2" x 13 1/2" x 3/4")
- Opening for internal wiring
- Slotted openings for a 14 1/2" diameter bolt circle
- Concrete extension for baseplate mounting
- Anchor bolts (3/4"⌀ x 27" x 3-3/4")
Streetlighting / Decorative
Grandview
Cross Section
Fluted
Symmetrical / Tapered
Available Heights (Above Grade)
10' - 14'
This reference chart outlines typical heights and classes for this pole style. Details on other sizes (not listed) are available upon request. Please contact our sales department for more information.

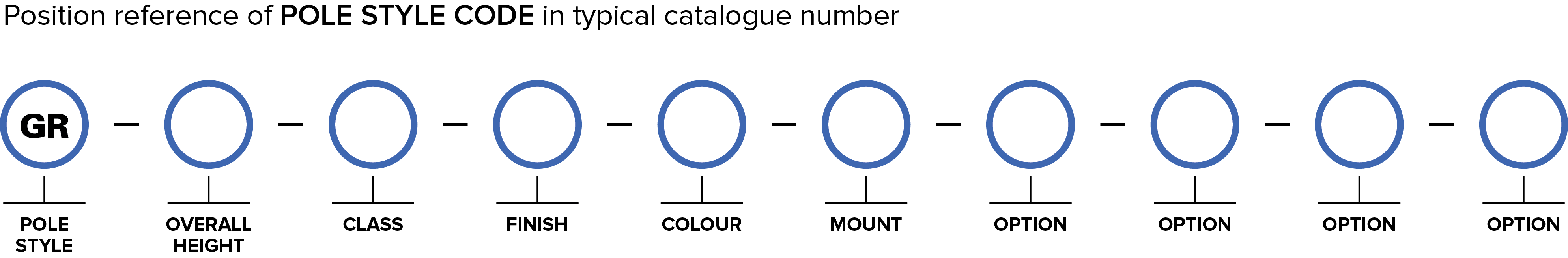

| Pole Class | Pole Catalogue Number [Style/Height/Class] |
A | B | C | D | E | Ultimate Ground Line Moment [FT. LBS.] |
Nominal Pole Weight [LBS.] |
| Total Pole Length [FT.] |
Pole Height Above Grade [FT.] |
Direct Burial Depth [FT.] |
Pole Tip Dimension [IN.] |
Pole Butt Dimension [IN.] |
||||
| A | GR-150-A | 15 | 10 | 5 | 6 1/4 | 9 3/4 | 4800 | 1100 |
| GR-160-A | 16 | 11 | 5 | 6 | 9 3/4 | 5400 | 1175 | |
| GR-170-A | 17 | 12 | 5 | 5 3/4 | 9 3/4 | 6000 | 1250 | |
| GR-180-A | 18 | 13 | 5 | 5 5/8 | 9 3/4 | 6600 | 1325 | |
| GR-190-A | 19 | 14 | 5 | 9 1/4 | 9 3/4 | 7200 | 1400 |
The Grandview is available in 3 different surface finishes. Note: The polished finish is not available for this pole. For more information on our Surface Finish Options click here.
Plain Grey Mold Finish
N/A
Polished Finish
Etched Finish
Exposed Finish
The Grandview is available in all 12 standard USI colours as well as with our plain grey mold finish. Custom colours are available, please contact our sales department. For more information on our Colour Options click here.
Autumn Red
Etched
Exposed
Aztec Jade
Etched
Exposed
Black Eclipse
Etched
Exposed
Dark Bronze
Etched
Exposed
Desert Rose
Etched
Exposed
Desert Sand
Etched
Exposed
Midnight Lace
Etched
Exposed
Natural Grey
Etched
Exposed
Oriental Jade
Etched
Exposed
Salt & Pepper
Etched
Exposed
Seluki Bronze
Etched
Exposed
Venetian White
Etched
Exposed
The Grandview has 2 available fixture mount options. For more information on our Fixture Mount Options click here.
Steel Tenon / Post Top
USI can accomodate any style of fixture or arm. If the style you require is not shown, please select Option 90 and contact our sales department.
Custom Mount
The Grandview has 19 available options and accessories. For more information on our Options and Accessories click here.
Direct Burial - Standard and Cost Effective
Note: Generally the native material can be used for backfill. Depending on site conditions, alternative materials may be required.
Base Plate - Flush with bolts exposed
Base Plate - Below Grade Stub
