    Pole Styles

    Edinburgh

    Available in all colours.
    Salt & Pepper
    Black Eclipse

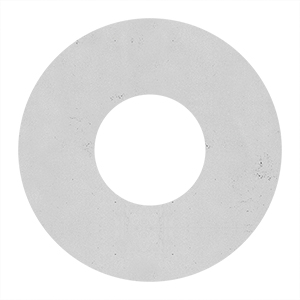

    Cross Section

    Round

    Symmetrical / Tapered

    Available Heights (Above Grade)

    10' - 22.5'

    Download
    Edinburgh Brochure
    Download
    Pole Detail Line Drawing
    Online
    Request a Quote

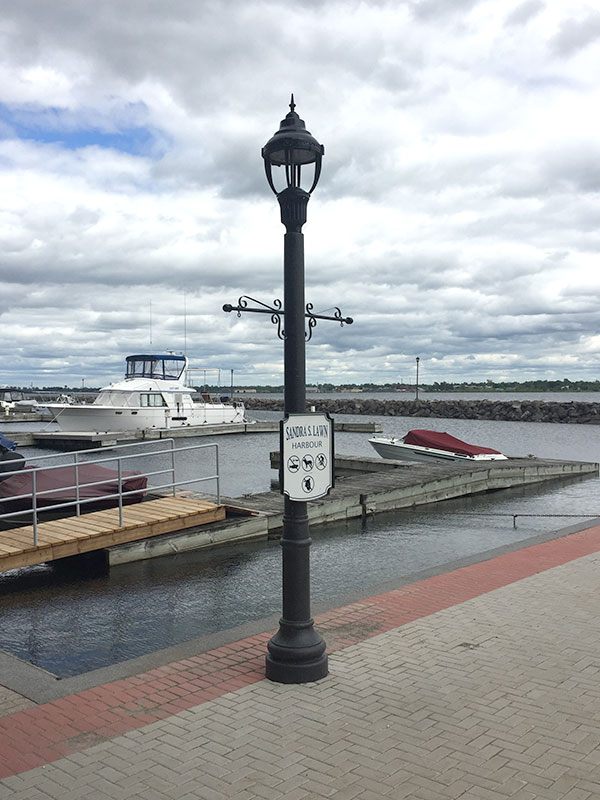

    Edinburgh Photo Gallery

    Click images to enlarge

    Edinburgh – Options and Information

    This reference chart outlines typical heights and classes for this pole style. Details on other sizes (not listed) are available upon request. Please contact our sales department for more information.

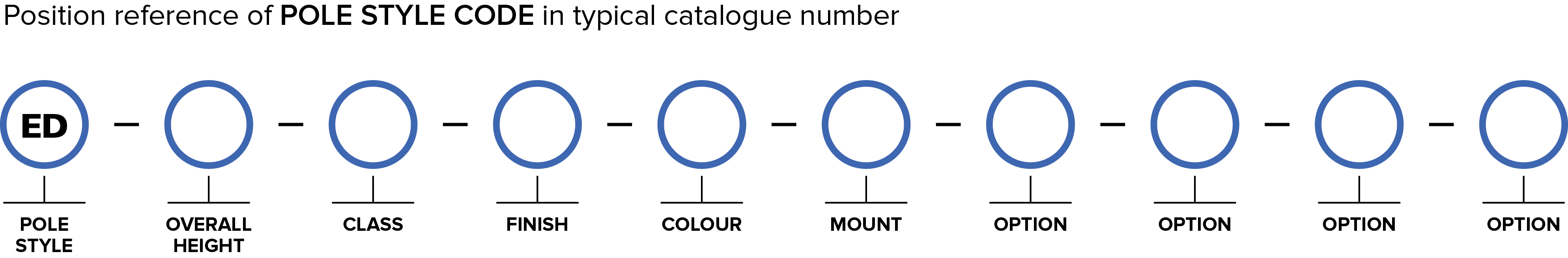

    Pole Class Pole Catalogue Number
    [Style/Height/Class]
    A B C D E Ultimate Ground Line Moment
    [FT. LBS.]
    Nominal Pole Weight
    [LBS.]
    Total Pole Length
    [FT.]
    Pole Height Above Grade
    [FT.]
    Direct Burial Depth
    [FT.]
    Pole Tip Dimension
    [IN.]
    Pole Butt Dimension
    [IN.]
    A ED-150-A 15 10 5 6 1/4 10 4800 830
    ED-160-A 16 11 5 6 1/8 10 5400 880
    ED-170-A 17 12 5 6 1/16 10 6000 930
    ED-180-A 18 13 5 5 1/16 10 6600 995
    ED-190-A 19 14 5 5 13/16 10 7200 1050
    ED-200-A 20 15 5 5 3/4 10 7800 1100
    ED-210-A 21 16 5 5 5/8 10 8400 1150
    ED-220-A 22 17 5 5 1/2 10 9000 1200
    ED-230-A 23 18 5 5 7/16 10 9600 1250
    ED-240-A 24 19 5 5 5/16 10 10200 1300
    ED-250-A 25 20 5 5 3/16 10 10800 1350
    ED-260-A 26 21 5 5 1/8 10 11400 1400
    ED-270-A 27 22 5 5 10 12000 1450

    The Edinburgh is available in 3 different surface finishes. Note: The polished finish is not available for this pole. For more information on our Surface Finish Options click here.

    1

    Plain Grey Mold Finish

    N/A

    2

    Polished Finish

    3

    Etched Finish

    4

    Exposed Finish

    The Edinburgh is available in all 12 standard USI colours as well as with our plain grey mold finish. Custom colours are available, please contact our sales department. For more information on our Colour Options click here.

    AR

    Autumn Red

    Etched

    Exposed

    AJ

    Aztec Jade

    Etched

    Exposed

    BE

    Black Eclipse

    Etched

    Exposed

    DB

    Dark Bronze

    Etched

    Exposed

    DR

    Desert Rose

    Etched

    Exposed

    DS

    Desert Sand

    Etched

    Exposed

    ML

    Midnight Lace

    Etched

    Exposed

    NG

    Natural Grey

    Etched

    Exposed

    OJ

    Oriental Jade

    Etched

    Exposed

    SP

    Salt & Pepper

    Etched

    Exposed

    SB

    Seluki Bronze

    Etched

    Exposed

    VW

    Venetian White

    Etched

    Exposed

    The Edinburgh has 8 available fixture mount options. For more information on our Fixture Mount Options click here.

    10

    Side Mount / Through Bolts

    20

    Side Mount / Inserts

    30

    Steel Tenon / Post Top

    40

    Concrete Tenon / Post Top

    50

    Top Mount / Round

    60

    Scroll Arm

    70

    Clamp On

    USI can accomodate any style of fixture or arm. If the style you require is not shown, please select Option 90 and contact our sales department.

    90

    Custom Mount

    The Edinburgh has 19 available options and accessories. For more information on our Options and Accessories click here.

    A

    Banner Arm

    A1

    Banner Arm with Scroll

    A2

    Banner Arm with Flower Pot Holder

    A3

    Banner Arm with Scroll and Flower Pot Holder

    A4

    Breakaway Banner Arm

    B

    Base Plate - Flush with Bolts Exposed

    B1

    Base Plate - Hidden Bolt Pockets

    B2

    Base Plate - Below Grade Stub

    C

    Custom Accessory

    D

    Double Handhole Box

    D2

    Double Handhole Box with In-Pole Breaker

    H

    Flag Holder

    L

    Ladder Arm Rest

    L1

    Ladder Arm Rest with Scroll

    P

    Interior Corrosion Protection

    R

    GFI Receptacle

    S

    Base Plate Shroud - Square

    S1

    Base Plate Shroud - Round

    X

    Exterior Silane Sealer

    Direct Burial - Standard and Cost Effective

    1. Auger the appropriate size hole.
    2. Set pole in hole and plumb straight.
    3. Back fill with specified material, tamping every 6".

    Note: Generally the native material can be used for backfill. Depending on site conditions, alternative materials may be required.

    B

    Base Plate - Flush with bolts exposed

    1. Hot-dipped galvanized steel baseplate (23" x 23" x 3/4")
    2. Opening for internal wiring
    3. Slotted openings for a 23" diameter bolt circle
    4. Typically pole is set 2" - 3" below grade
    5. Anchor bolts (3/4"⌀ x 27" x 3-3/4")
    6. Precast or poured in-place pole base
    B2

    Base Plate - Below Grade Stub

    1. Hot-dipped galvanized steel baseplate (13 1/2" x 13 1/2" x 3/4")
    2. Opening for internal wiring
    3. Slotted openings for a 14 1/2" diameter bolt circle
    4. Concrete extension for baseplate mounting
    5. Anchor bolts (3/4"⌀ x 27" x 3-3/4")
    Online
    Request a Quote

    Address

    61 Bongard Avenue
    Ottawa, Ontario, Canada
    K2E 6V2

    Phone

    Toll Free: 1-800-267-6466
    Tel: (613) 225-6398
    Fax: (613) 225-1681

    Email

    Sales: sales@utilitystructures.com
    Info: info@utilitystructures.com

    Business Hours

    Monday – Friday:
    8:00 a.m. – 5:00 p.m. (EST)
