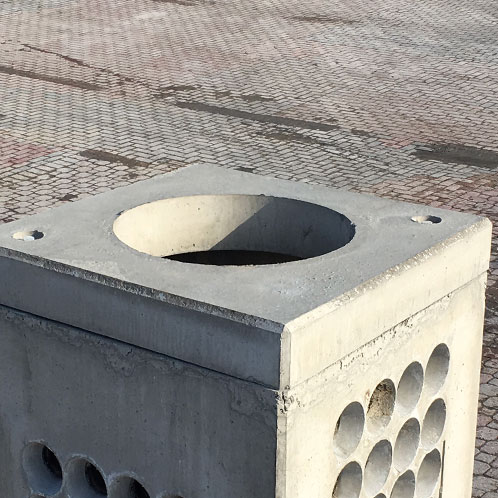

4' x 4' Pad
USI Product Code
E644T
(for use with E644B/E644B-M Base)
Dimensions
8" (H) x 48" x 48"
.20m (H) x 1220mm x 1220mm (OD)
Weight
1035 lbs
470 kg
Shop Drawings
Click on image to enlarge.
Plan View
Cross Section A
Detail – Lifting System
Construction Details
- DESIGNED TO CL-625-ONT TRUCK LIVE LOADING AS PER CSA S6-06
- USE WITH E644B BASE & E644B-M BASE
Product Details
PAD OPENING DETAILS
- E644T (27) : 27" [686mm] OPENING
- E644T (30) : 30" [762mm] OPENING
Available Custom Options
- CUSTOM ACCESS OPENING
- PAD HEIGHT
CSA Details
CSA 23.4-05
- 35 MPa (5000psi) AT 28 DAYS
- STRIPPING STRENGTH: MIN. 20 MPa (2900psi)
- 5-8% AIR ENTRAINED
- EXPOSURE CLASS: C-1
REINFORCING: STEEL TO CSA CAN A23.1
