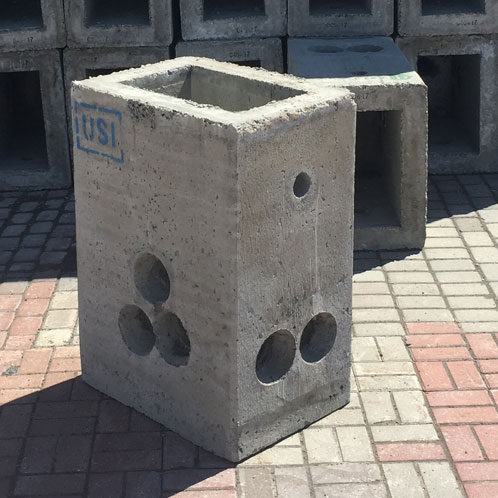

12" x 20" Rectangle Electrical Handhole
USI Product Code
E27MTO
OPSD# 2111.05
Dimensions
33" (H) x 12" x 20"
.75m (H) x 300mm x 500mm (ID)
Weight
925 lbs
420 kg
Shop Drawings
Click on image to enlarge.
Plan View
Cross Section A
Cross Section B
Detail – Lifting System
Construction Details
- AS PER OPSD 2112.05
- FRAME & COVER OPTION IS AVAILABLE: F4
CSA Details
CSA 23.4-05
- 35 MPa (5000psi) AT 28 DAYS
- STRIPPING STRENGTH: MIN. 20 MPa (2900psi)
- 5-8% AIR ENTRAINED
- EXPOSURE CLASS: C-1
REINFORCING: STEEL TO CSA CAN A23.1
