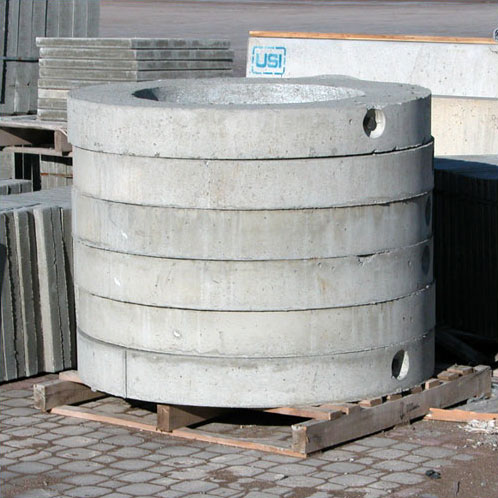

32" dia. (ID) Round Manhole Adjuster
USI Product Code
S6 (x)
(See chart below for specific product codes, available sizes, and weight details)
Dimensions
Height varies x 32" dia. (ID)
Height varies x 810mm dia. (ID)
Weight
Weight varies
Available Sizes
Size
Weight
S6 (2)
2" (H) x 32" dia. (ID)
51mm (H) x 813mm dia. (ID)
51mm (H) x 813mm dia. (ID)
Varies
S6 (4)
4" (H) x 32" dia. (ID)
101mm (H) x 813mm dia. (ID)
101mm (H) x 813mm dia. (ID)
Varies
S6 (6)
6" (H) x 32" dia. (ID)
151mm (H) x 813mm dia. (ID)
151mm (H) x 813mm dia. (ID)
Varies
Shop Drawings
Click on image to enlarge.
Plan View
Side Elevation
Construction Details
- USED WITH: E35, E36, E37, E38, E39
CSA Details
CSA 23.4-05
- 35 MPa (5000psi) AT 28 DAYS
- STRIPPING STRENGTH: MIN. 20 MPa (2900psi)
- 5-8% AIR ENTRAINED
- EXPOSURE CLASS: C-1
REINFORCING: STEEL TO CSA CAN A23.1
